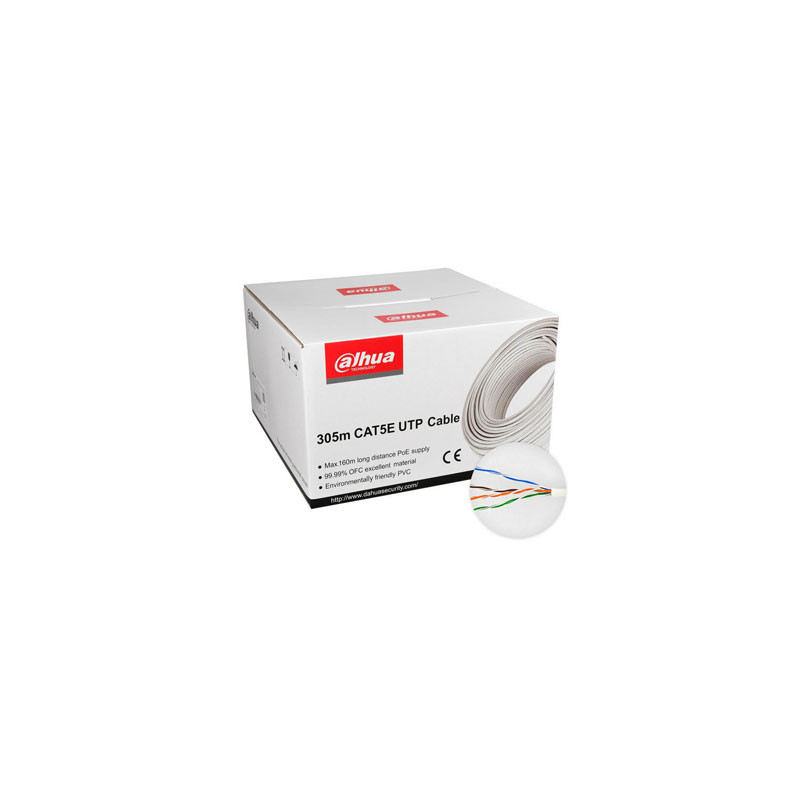

Dahua Vidaus Kabelis CAT5E UTP 1x305m PFM920I-5EUN
111,86 €
Nėra mokesčio
Features:
• 305m UTP CAT5E
• Max.160m long distance PoE supply
• 99.99% OFC(oxygen free copper) Excellent material
• Environmentally friendly PVC
Technical Specifications:
• Material OFC(oxygen free copper)
• Composition 1/0.45
• Wire gauge 0.45*4P±0.005mm
• Min. average thickness 0.2mm
• Diameter 0.83mm±0.03mm
• Color(4 Pairs) Orange, white/orange; green, white/green; blue, white/blue; brown, white/brown
• Material PVC
• Min. average thickness 0.5mm±0.05mm
• Diameter 4.7mm
• Max. DC resistance of single conductor 12 ?/100m
• Max. voltage range 75V
• Max. unbalance rate of line pairs’ direct current resistance 12%
• Min. insulation resistance 5000M?·km
• Max. mutual capacitance 5.6NF/100m
• Max. attenuation 22(dB/100m, 100MHz)
• N.W. 7.8kg
• Packaging dimension 360mmx360mmx220mm
• Weight (with packaging) 8.6kg
• 305m UTP CAT5E
• Max.160m long distance PoE supply
• 99.99% OFC(oxygen free copper) Excellent material
• Environmentally friendly PVC
Technical Specifications:
• Material OFC(oxygen free copper)
• Composition 1/0.45
• Wire gauge 0.45*4P±0.005mm
• Min. average thickness 0.2mm
• Diameter 0.83mm±0.03mm
• Color(4 Pairs) Orange, white/orange; green, white/green; blue, white/blue; brown, white/brown
• Material PVC
• Min. average thickness 0.5mm±0.05mm
• Diameter 4.7mm
• Max. DC resistance of single conductor 12 ?/100m
• Max. voltage range 75V
• Max. unbalance rate of line pairs’ direct current resistance 12%
• Min. insulation resistance 5000M?·km
• Max. mutual capacitance 5.6NF/100m
• Max. attenuation 22(dB/100m, 100MHz)
• N.W. 7.8kg
• Packaging dimension 360mmx360mmx220mm
• Weight (with packaging) 8.6kg
