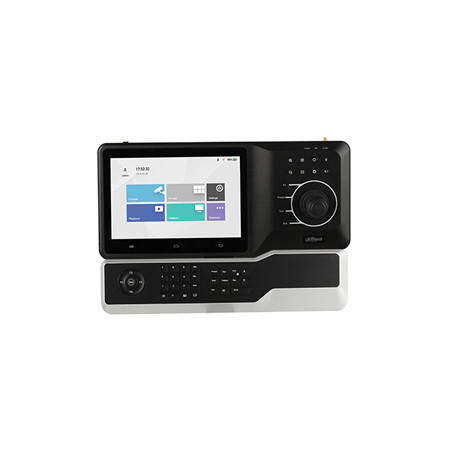

HD Tinklinė kameros valdymo klaviatūra, 10.1" TFT LCD, Wi-Fi, 4 HDMI, H.265, H.264, 4K

Features:

Keyboard to Control
• DAHUA Standalone DVR
• DAHUA (Network) High Speed Dome
• DAHUA High Speed Dome
• Central Management Platform
• Network Video Server
• RS232, RS485 & Network Connections(Wi-Fi)
• Four Dimensional Joystick Control of PTZ Functions
• Support 4K decoding live view
• Support 4CH HDMI output
• Support snapshot and recording to U-disk
• Support Video-Wall display control
• Support bidirectional talk
• Preset Position, Auto Scan, Auto Pan, Auto Tour & Pattern
Control
• Auxiliary Functions, OSD and operation guides Control
• Includes an extension keypad module

Technical Specifications:

System
• Main Processor Dual-core Braswell Processor
• Operation System Embedded LINUX 4.2.0
Display
• Video Output 4×HDMI(extension decoding display)
• Stream Type H.265, H.264, MPEG, Nonstandard
• Decoding Capability 4CH@12MP(20fps)/4CH@4K(30fps)/6CH@5MP(30fps)/8CH@4MP(30fps)/10CH@3MP(30fps)/16CH@2MP(30fps)
• Stream Type H.265, H.264, H264H, H264B, MJPEG, MPEG4, SVAC, SmartH.264 and non standard
• Display split 1/4/9/16
• Screen 10.1" TFT LCD touch screen (1280*800)
Audio & Alarm
• Audio Input/Output 1 pair 3.5mm jack, support bidirectional talk
• Loudspeaker 1
• Alarm In 4, High-low level
• Alarm Out 4 (3 relay, 1 12V_1A)
General
• Network Interface 2×RJ-45 port (10/100/1000M)), Wi-Fi
• USB Interface 2 USB3.0, 2 USB2.0
• Wi-Fi Support (2.4GHz)
• RS485 1 for ptz control
• RS232 2, debugging and recorder control
• RS422 1(reserved)
Environmental
• Power Supply DC12V, 4A
• Power Consumption 25W(max), 18W(standby)
• Working Temperature -10°C ~+55°C
• Working Humidity 10%~95%
• Atmosphere Pressure 86kpa~106kpa
• Dimension Host: 425mmx194mmx59mm (W×D×H)
• Mini Keypad: 421mmx105mmx26mm (W×D×H)
• Weight 3.73kg(exclude package)
