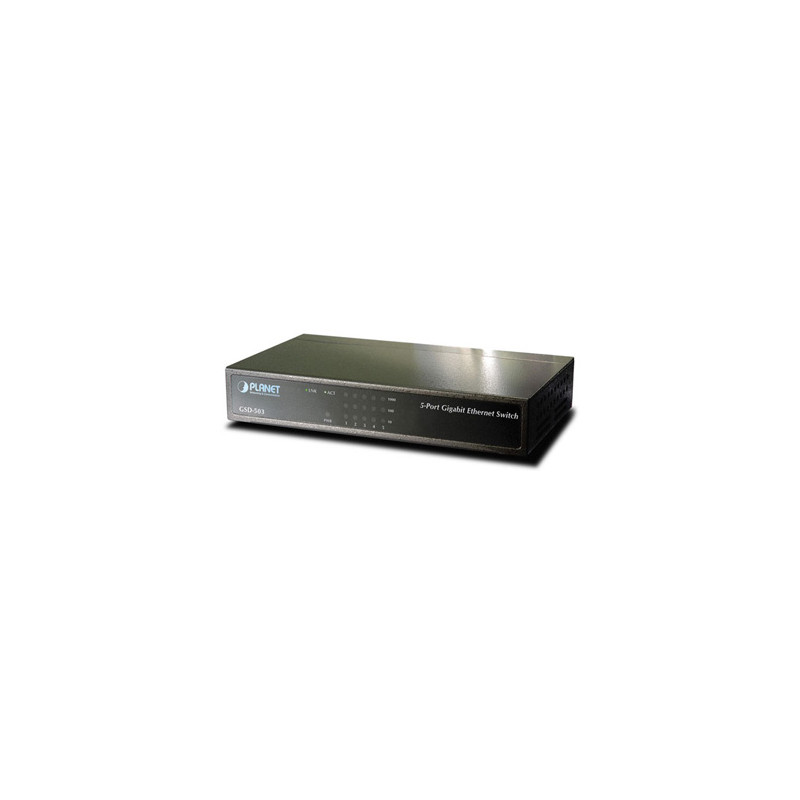

5-prievadų Gigabitinis interneto tinklo šakotuvas Planet GSD-503-EU

5-prievadų Gigabitinis interneto tinklo šakotuvas Planet GSD-503-EU

33,32 €
Nėra mokesčio

Trumpas aprašymas:

• Gigabitinis interneto tinklo šakotuvas 5-prievadų;
• 5 x 10/100/1000Mbps, metalinis korpusas;
• Auto-MDI/MDIX visiems portams;
• Palaiko CSMA / CD protokolus;
• Atitinka interneto standartus: IEEE 802.3, 10Base-T, IEEE 802.3u, 100Base-TX, IEEE 802.3ab 1000Base-T;
• MAC adresų atmintis: 8k Bitų;
• Išorinis maitinimo adapteris 12V 0.5A;
• Išmatavimai: 155(L) x 86(W) x 26 (H) mm.


Techninė charakteristika:

• Hardware Version: 5.0
• 10/100/1000Base-T Ports: 5 Auto MDI/MDIX ports
• Enclosure: Metal
• Power on/off button: 1
• Dimension (W x D x H) 155 x 86 x 26 mm
• Weight (g)360
• Power Requirement: External power adapter 12V, 500mA
• Power Consumption / Dissipation (Full operating): 4.4 Watts / 15 BTU

Switch Specification

• Switch Processing Scheme: tore-and-Forward
• Address Table: 8K entries
• Flow Control: Back pressure for half duplex, IEEE 802.3x Pause Frame for full duplex
• Switch fabric: 10Gbps
• Throughput (packet per second): 7.44Mpps
• Jumbo packet size: 9K

Standards Conformance

• Standards Compliance: IEEE 802.3 (Ethernet) IEEE 802.3u (Fast Ethernet)IEEE 802.3ab (Gigabit Ethernet)IEEE 802.3x (Full Duplex Flow Control)
• Temperature Operating: 0~50 Degree C
• Storage: -10~70 Degree C
• Humidity Operating Operating: 5~90%, Storage: 5~90% (Non-condensing)
• Regulation Compliance FCC Part 15 Class A, CE
GSD-503-EU
5 Vnt.
