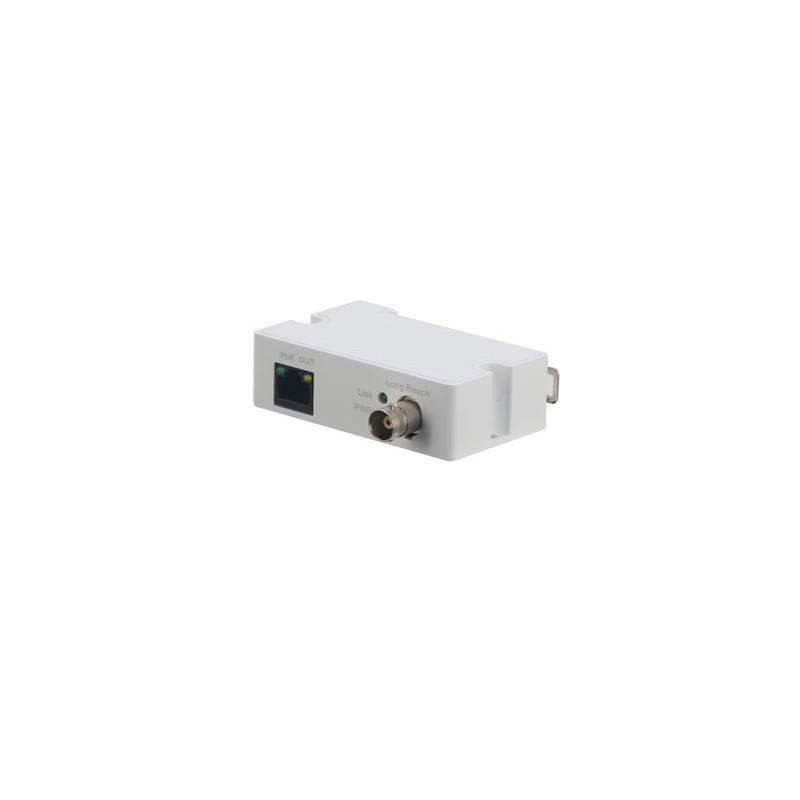

Single-Port Long Reach Ethernet over Coax Extender receiver
40,46 €
Nėra mokesčio
Features:
• Receiver
• Supports IEEE802.3, IEEE802.3u standards
• Supports IEEE802.3af and IEEE802.3at power supply standards
• Port: 1*RJ45 10/100Mbps, 1*BNC
• Supports RG59 coaxial cable: 400m/100Mbps,1000m/10Mbps
• Supports MDI/MDIX self-adaption
• Supports long range power supply transmission via coaxial cable
Technical Specifications:
• Function Port 1*10/100 Mbps Base-TX 1*BNC
• Power Consumption <2W
• Transmission Bandwidth RG59 coaxial cable: 400m/100Mbps, 1000m/10Mbps
• PoE Protocol IEEE802.3af, IEEE802.3at
• Network Standard IEEE802.3, IEEE802.3u, IEEE802.3x
• Lightning Protection Common Mode 4KV
• Differential Mode 2KV
• Operating Temperature -30°C-65°C
• Operating Humidity 5%~95%
• Weight 61g
• Dimension (W×D×H) 79mm×52mm×23mm
• Receiver
• Supports IEEE802.3, IEEE802.3u standards
• Supports IEEE802.3af and IEEE802.3at power supply standards
• Port: 1*RJ45 10/100Mbps, 1*BNC
• Supports RG59 coaxial cable: 400m/100Mbps,1000m/10Mbps
• Supports MDI/MDIX self-adaption
• Supports long range power supply transmission via coaxial cable
Technical Specifications:
• Function Port 1*10/100 Mbps Base-TX 1*BNC
• Power Consumption <2W
• Transmission Bandwidth RG59 coaxial cable: 400m/100Mbps, 1000m/10Mbps
• PoE Protocol IEEE802.3af, IEEE802.3at
• Network Standard IEEE802.3, IEEE802.3u, IEEE802.3x
• Lightning Protection Common Mode 4KV
• Differential Mode 2KV
• Operating Temperature -30°C-65°C
• Operating Humidity 5%~95%
• Weight 61g
• Dimension (W×D×H) 79mm×52mm×23mm
