PoE šakotuvas 1000Mbps 4portų+2G uplink, Hi-PoE, 60W

Product Overview

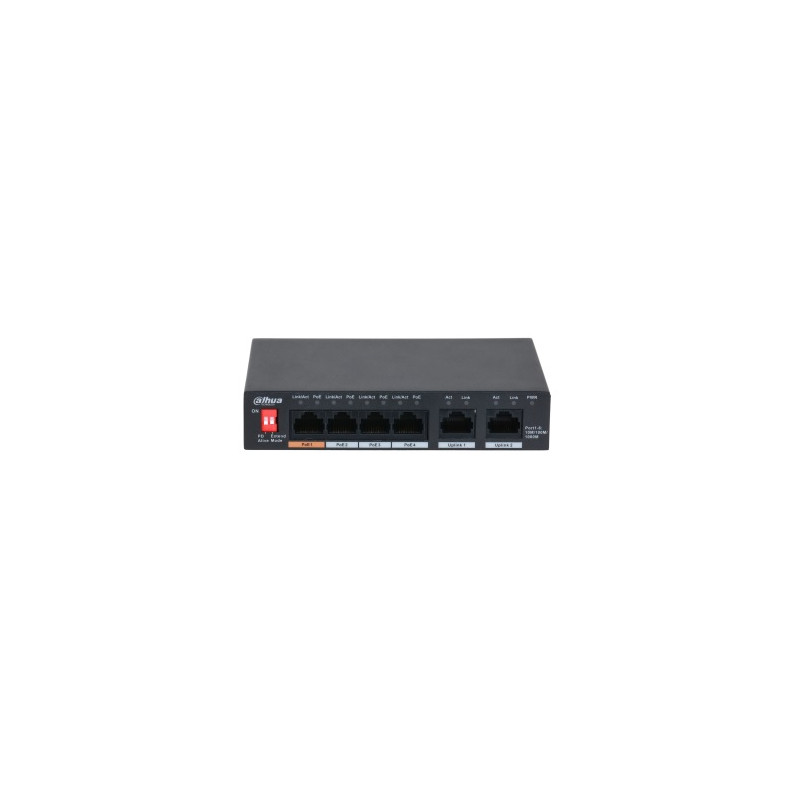

DH-PFS3006-4GT-60 is an unmanaged Desktop Switch with 4 × 10/100/1000 Mbps PoE Ports. It provides 4 × 10/100/1000 Mbps Ethernet ports and 2 × 10/100/1000 Mbps uplink ports. The product is equipped with two types of transmission modes (Extend Mode On/ Extend Mode Off). It also supports PoE watchdog to avoid manually maintenance and device restart, which can realize the intelligent management and reduce the cost. The device is applicable for use in different scenarios, including home, office, server farm, and small mall.

Features:

• Intelligent PoE controls over power consumption and offers real-time monitoring. Supports ultra wide power supplies and is able to adapt to IPC power fluctuations.
• Supports long distance PoE transmission. By dialing or enabling long-range transmission on the WEB interface, the transmission distance of a PoE port can be up to 250 m, meeting the requirements of wired transmission (bandwidth reduced to 10Mbps).
• All-gigabit ports provide real-time transmisstion with no lag.
• The orange port meets the IEEE 802.3af and IEEE 802.3at Hi-PoE standards, also supports a maximum power output of 60W for powering high-power devices.
• Innovative PoE Watchdog can be switched on by dialing or turning on the WEB page switch.
• MAC address list capacity is 2K.
• Conform IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x standards.
• Support PoE IEEE802.3af/ IEEE802.3at/ Hi-PoE standard.
• Industrial wide temperature design.


Technical Specifications:

• Model PFS3210-8GT2GF-96.
Ethernet Ports:
• 4*10/100/1000Mbps RJ45 (PoE).
• 2*10/100/1000Mbps RJ45 (uplink).
• PoE Power Consumption Port 1=60W (Hi-PoE), Port 2-4=30W, Total=60W.
• PoE Protocol IEEE802.3af/ IEEE802.3at/ Hi-PoE.
• PoE/Hi-PoE PIN Assignment: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-).
• Switching Capacity 14Gbps.
• Packet Forwarding 8.928 Mbps.
• Packet Buffer Memory 1Mbit.
• MAC Table Size 2K.
• Application Humidity 5%~95%RH.
• Power input: DC 48V-57V.
• Lighting Protection Common Mode 4KV.
• Differential Mode 2KV.
• ESD protection Air discharge: 8 kV.
• Contact discharge: 6 kV.
• Weight: 300 g.
• Working Temperature: -10°C~55°C.
• Dimension(W×D×H) 130mm×85mm×26mm.

Transmission Performance:
Switch power supply voltage 53V.
CAT5E/CAT6. Max. DC resistance < 10ohm/100m

Cable(m) - Load Capacity(W) - Bandwidth(Mbps)
IEEE802.3bt 90W:
100m Cable; 71.3W Load Capacity; 100Mbps Bandwidth.
150m Cable; 62W Load Capacity; 10Mbps Bandwidth.
200m Cable; 51W Load Capacity; 10Mbps Bandwidth.
250m Cable; 40W Load Capacity; 10Mbps Bandwidth.
Hi-PoE 60W:
100m Cable; 53W Load Capacity; 100Mbps Bandwidth.
150m Cable; 50W Load Capacity; 10Mbps Bandwidth.
200m Cable; 47W Load Capacity; 10Mbps Bandwidth.
250m Cable; 37W Load Capacity; 10Mbps Bandwidth.
IEEE802.3at 30W:
100m Cable; 25.5W Load Capacity; 100Mbps Bandwidth.
150m Cable; 25.5W Load Capacity; 10Mbps Bandwidth.
200m Cable; 25.5W Load Capacity; 10Mbps Bandwidth.
250m Cable; 25.5W Load Capacity; 10Mbps Bandwidth.

Note: The actual transmission distance may vary due to power consumption of connected devices or the cable type and status.
