PoE šakotuvas 8 portų 1000Mbps +2 uplink

Product Overview

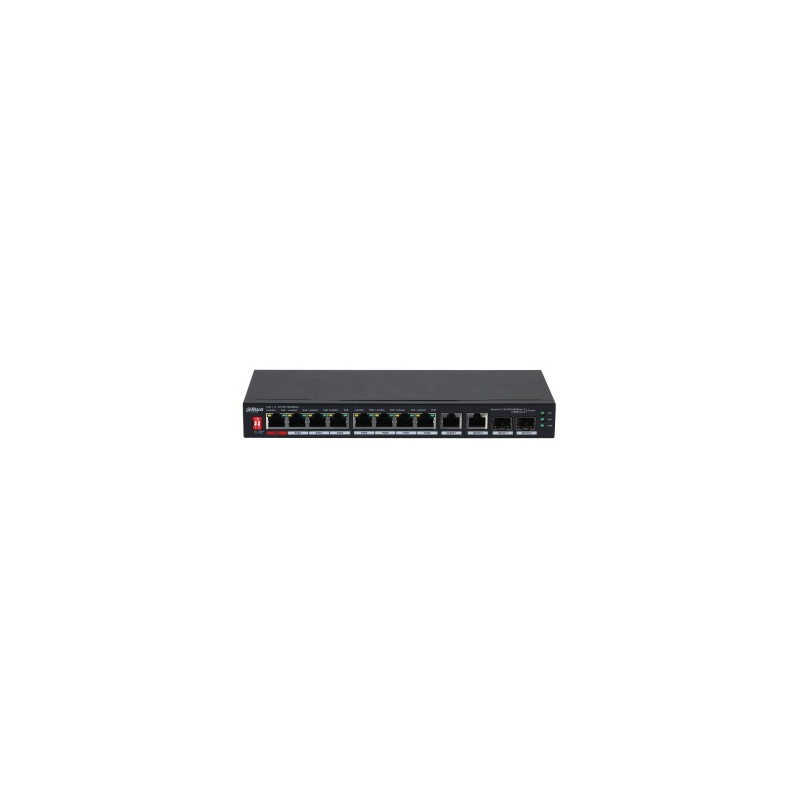

PFS3210-8GT2GF-96 is an unmanaged Desktop PoE Switch with 8 × 10/100/1000Mbps PoE Ports. It provides 8 × 10/100/1000Mbps Ethernet ports, 2 × 1000M SFP. The product is equipped with two types of transmission modes (Extend Mode On/ Extend Mode Off). The red port supports the IEEE802.3bt and the Hi-PoE standards. The maximum power consumption is 90W. It alsosupports PoE watchdog to avoid manually maintenance and device restart, which can realize the intelligent management and reduce the cost. Suitable for small-scale scenes such as offices, schools, hotels, supermarkets, and hospitals.

Features:

• Intelligent PoE provides power consumption control and real-time monitoring to guarantee priority of power supply for important ports and prevent malfunctioning caused by power consumption change. Supports ultra wide power supply, able to adapt to IPC power fluctuation.
• Supports long distance PoE transmission (up to 250 m, meeting the requirement of wired transmission (bandwidth reduced to 10Mbps).
• All-gigabit ports provide real-time transmisstion with no lag.
• The red port meets the IEEE 802.3bt and the Hi-PoE standards.
• PoE watchdog monitors the status of terminals in real-time.
• MAC address list capacity is 4K.
• Conform IEEE802.3; IEEE802.3u; IEEE 802.3ab; IEEE802.3x standards.
• Supports PoE IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt standard.
• Industrial wide temperature design.
• Durable full-metal housing provides great heat dissipation.

Technical Specifications:

• Model PFS3210-8GT2GF-96.
Ethernet Ports:
• 8*10/100/1000Mbps Base-T (PoE).
• Uplink 1-2: 2*10/100/1000Mbps Base-T (combo).
• Uplink 1-2: 2*1000Mbps Base-X (combo).
• PoE Power Consumption Port 1=90W, Port 2-8=30W, Total=96W.
• PoE Protocol IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt.
• PoE/Hi-PoE PIN Assignment: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-).
• Switching Capacity 20Gbps.
• Packet Forwarding 14.88 Mpps.
• Packet Buffer Memory 1.5Mbit.
• MAC Table Size 4K.
• Application Humidity 10%~90%RH.
• Power supply: DC 53V / 1.81A.
• Lighting Protection Common Mode 4KV.
• Differential Mode 2KV.
• Statics protection Air discharge: 8 kV.
• Contact discharge: 6 kV.
• Weight: 650 g.
• Working Temperature: -10°C~55°C.
• Dimension(W×D×H) 240mm×105mm×28mm.

Transmission Performance:
Switch power supply voltage 53V.
CAT5E/CAT6. Max. DC resistance < 10ohm/100m

Cable(m) - Load Capacity(W) - Bandwidth(Mbps)
IEEE802.3bt 90W:
100m Cable; 71.3W Load Capacity; 1000Mbps Bandwidth.
150m Cable; 62W Load Capacity; 10Mbps Bandwidth.
200m Cable; 51W Load Capacity; 10Mbps Bandwidth.
250m Cable; 40W Load Capacity; 10Mbps Bandwidth.
Hi-PoE 60W:
100m Cable; 53W Load Capacity; 1000Mbps Bandwidth.
150m Cable; 50W Load Capacity; 10Mbps Bandwidth.
200m Cable; 47W Load Capacity; 10Mbps Bandwidth.
250m Cable; 37W Load Capacity; 10Mbps Bandwidth.
IEEE802.3at 30W:
100m Cable; 25.5W Load Capacity; 1000Mbps Bandwidth.
150m Cable; 25.5W Load Capacity; 10Mbps Bandwidth.
200m Cable; 25.5W Load Capacity; 10Mbps Bandwidth.
250m Cable; 25.5W Load Capacity; 10Mbps Bandwidth.

Note: The actual transmission distance may vary due to power consumption of connected devices or the cable type and status.
